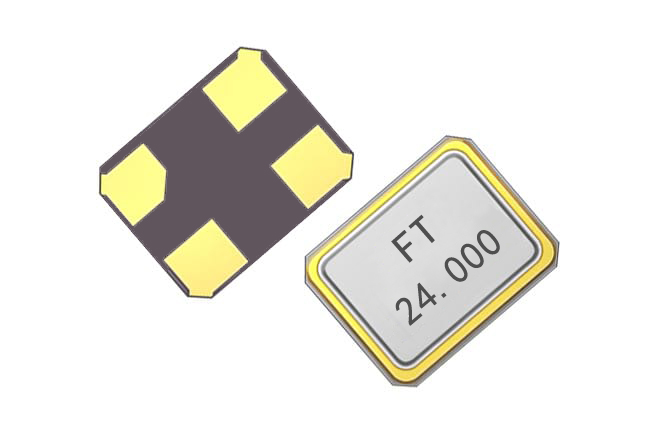

SMD1612

Frequency:24MHz-60MHz

Size:1.6 x 1.2 mm

Temperature:-20℃~+70℃

-40℃~+85℃

Stability:±10ppm

±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

SMD1612Parameter Table

PARAMETERS SPECIFICATION
Frequency Range 24~60MHz
Operation Mode Fundamental
Loading Capacitance 9pF Std.  8 to 32pF / Series available
Drive Level 10μW(100μW Max)
Frequency Tolerance ±10ppm~±30ppm(at 25℃)
Equivalent Resistance 150Ω Max
Frequency Stability ±10ppm~±30ppm
Operating Temp. Range: -10~+60℃ to -40~+85℃
Storage Temp. Range:  -55~+125℃

Part Number Guide: e.g. FTX26.000M9SM1S-10/10B (*SM1S=1.6×1.2 SMD SEAM TYPE)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 26.000MHz 9pF SM1S +/-10ppm +/-10ppm B
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

External dimensions
