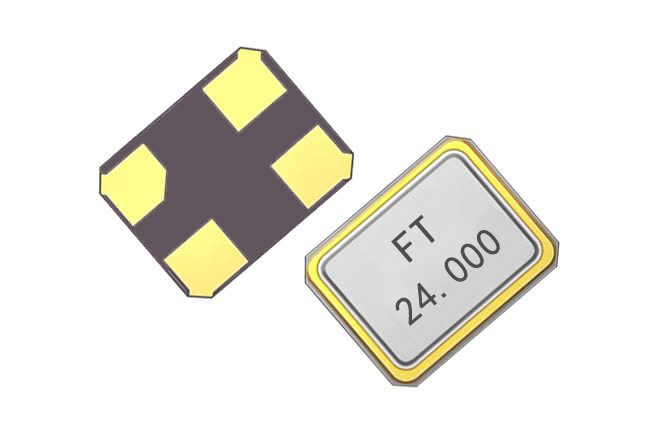

SMD1210

Frequency:
26MHz-52MHz

Size:
1.2 x 1.0 mm

Temperature:
-20℃~+70℃

-40℃~+85℃

Stability:
±10ppm

±30ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

SMD1210AParameter Table

PARAMETERS  SPECIFICATION
Frequency Range 26~52MHz
Operation Mode Fundamental
Loading Capacitance 9pF Std.  6 to 32pF / Series available
Drive Level 10μW(100μW Max)
Frequency Tolerance ±10ppm~±30ppm(at 25℃)
Equivalent Resistance 100Ω Max at 32MHz
Frequency Stability ±10ppm~±30ppm
Operating Temp. Range: -10~+60℃ to -40~+85℃
Storage Temp. Range:  -55~+125℃

PART NUMBER GUIDE 部件号示例 e.g. FTX32.000M9SM1A-10/10B (*SM1A=1.2×1.0 SMD SEAM TYPE)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 32.000M 9pF SM1A +/-10ppm +/-10ppm B
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

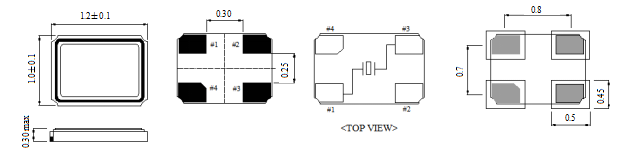

External dimensions
