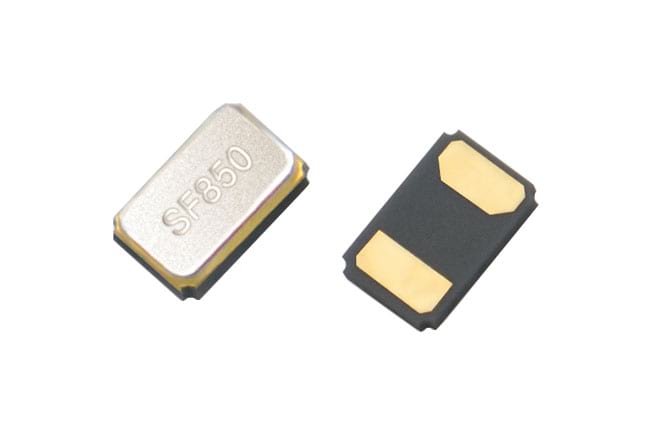

SMD1610

Frequency:32.768KHz

Size:1.6 x 1.0 mm

Temperature:-40℃~+85℃

Stability:±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 32.768KHz
Loading Capacitance 12.5pF Std. 9 pF available
Drive Level 0.1μW (1.0μW Max)
Frequency Tolerance ±20ppm（at 25℃）
Equivalent Resistance 90KΩ Max
Turn-over temperature +25℃±5℃
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -40～+85℃
Storage Temp. Range:  -40～+85℃
Aging（25℃，First Year） ±3ppm max

PART NUMBER GUIDE e.g. FTX32.768K12.5SM1-20D (*SM1=1.6×1.0 SMD)

Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pF SM1 20ppm D



Definition Description
Operating Temp. Range A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

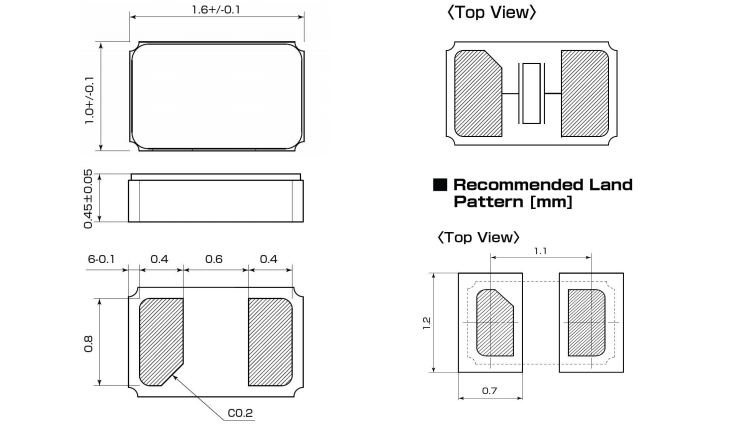

External dimensions
