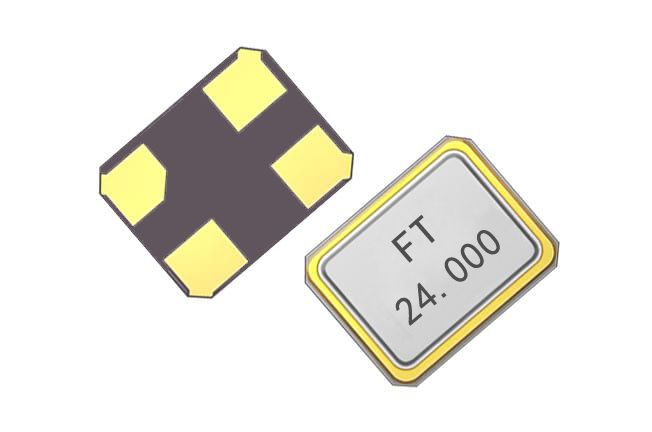

SMD3225

Frequency:8MHz-64MHz

Size:3.2 x 2.5 mm

Temperature:-20℃~+70℃

-40℃~+85℃

-40℃~+105℃

Stability:±10ppm

±20ppm

SKU: 3546
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS   SPECIFICATION
Frequency Range 12~60MHz
Operation Mode Fundamental
Loading Capacitance 9pF Std.  8 to 32pF / Series available
Drive Level 10μW(200μW Max)
Frequency Tolerance ±10ppm~±30ppm(at 25℃)
Equivalent Resistance 80Ω Max
Frequency Stability ±10ppm~±50ppm
Operating Temp. Range: -10~+60℃ to -40~+85℃
Storage Temp. Range:  -55~+125℃

Part Number Guide: e.g. FTX16.000M10SM3S-10/10B (*SM3S=3.2×2.5 SMD SEAM TYPE)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 16.000MHz 10pF SM3S +/-10ppm +/-10ppm B
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

External dimensions
