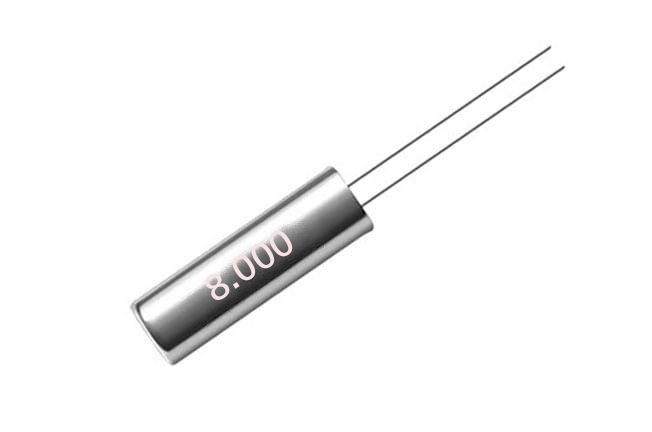

AT38

Frequency:6MHz-50MHz

Size:3.0 x 8.0 mm

Temperature:-20℃~+70℃

-40℃~+85℃

Stability:±10ppm

±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 6.000～50.000MHz
Loading Capacitance 20pF Std. 7pF~33pF available
Drive Level 10μW（300μW Max）
Frequency Tolerance ±10ppm / ±20ppm（at 25℃）
Equivalent Resistance See Below
Frequency Stability ±10ppm～±30ppm
Operating Temp. Range: 0～+50℃ to -40～+85℃
Storage Temp. Range: -40～+85℃
Aging（25℃，First Year） ±5ppm max

PART NUMBER GUIDE e.g. FTX20.000M20A8-20/30B (*A8=AT 3.0×8.0mm)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 20.000MHz 20pF A8 +/-20ppm +/-30ppm B



Definition Description
Operating

Temperature Range

 A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

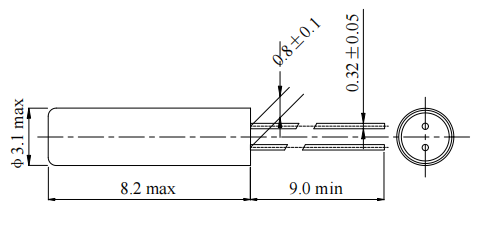

External dimensions
