SMD8*3.8

Frequency:32.768KHz
Size:8.0 x 3.8 mm
Temperature:-20℃~+70℃-40℃~+85℃
Stability:±20ppm
SKU: 1332
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 32.768KHz standard，20.000~165.000KHz
Loading Capacitance 12.5pF Std. 6 to 20pF Series available
Drive Level 1.0μW Max
Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance 50KΩ Max
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -20 ~ +70℃ / -40 ~ +85℃
Storage Temp. Range:  -55 ~ +125℃
Aging（25℃，First Year） ±3ppm max

Part Number Guide :e.g. FTX32.768K12.5SM8-20D (*SM8=8.0×3.8 SMD)

Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pf SM8 20ppm D
Definition Description
Operating Temp. Range A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

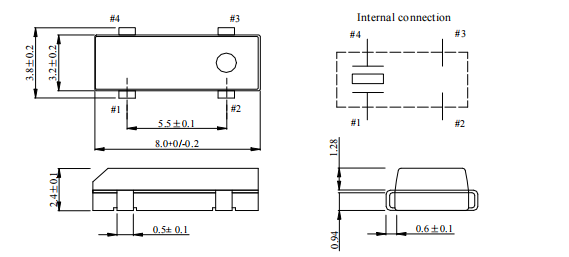

External dimensions
