SMD12.5*4.6

Frequency:32.768KHz
Size:12.5 x 4.6 mm
Temperature:-40℃~+85℃-20℃~+70℃
Stability:±20ppm
SKU: 2343
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

Item/type 3.579MHz~27.0 MHz
Dimensions 12.5 × 4.6 × 3.7mm
Loading Capacitance 18pF Std. 8 to 33pF Series available
Drive Level 100μW Typ.
Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance 200Ω Max
Temperature coefficient ±10ppm ~ ±30ppm
Operating Temp. Range: -20 ~ +70℃ / -40 ~ +85℃
Storage Temp. Range:  -55 ~ +125℃
Aging（25℃，First Year） ±3ppm max

PART NUMBER GUIDE e.g. FTX12.000M18SM12-20/30D (*SM12=12.5×4.6 SMD)

Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 12.000M 18 SM12 +/-20ppm D
Definition Description
Operating Temp. Range A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

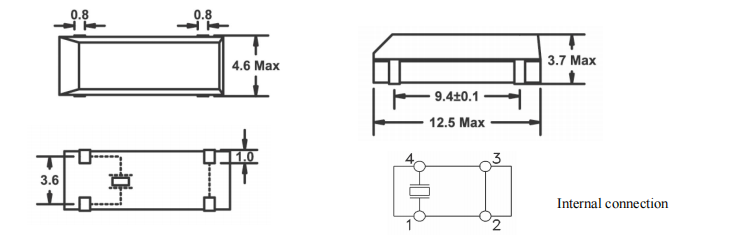

External dimensions
