SMD10.4*4.1 FT405

Frequency:32.768KHz
Size:10.4 x 4.1mm
Temperature:-40℃~+85℃-20℃~+70℃
Stability:±20ppm
SKU: 2241
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

PARAMETERS  SPECIFICATION
Frequency Range 32.768KHz standard，20.000~165.000KHz
Loading Capacitance 12.5pF Std. 6 to 20pF Series available
Drive Level 1.0μW Max
Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance 50KΩ Max
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -20 ~ +70℃ / -40 ~ +85℃
Storage Temp. Range:  -55 ~ +125℃
Aging（25℃，First Year） ±3ppm max

PART NUMBER GUIDE e.g. FTX32.768K12.5SM10A-20D (*SM10A=10.4×4.1 405Type)

Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pF SM10A +/-20 D



Definition Description
Operating

Temperature Range

 A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

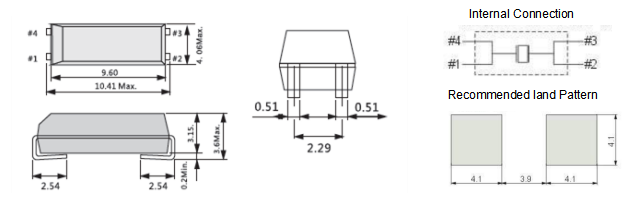

External dimensions
