SMD7.0*1.5

Frequency:32.768KHz
Size:7.0 x 1.5 mm
Temperature:-40℃~+85℃
Stability:±10ppm ±20ppm
SKU: 3322
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 32.768KHz
Loading Capacitance 12.5pF Std. 7 pF available
Drive Level 1.0μW Max
Frequency Tolerance ±20ppm(at 25℃)
Equivalent Resistance 65KΩ Max
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -40~+85℃
Storage Temp. Range:  -55~+125℃
Aging(25℃,First Year) ±3ppm max

PART NUMBER GUIDE 部件号示例 e.g. FTX32.768K12.5SM7-20D (*SM7=7.0×1.5 SMD)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pF SM7 +/-20ppm D



Definition Description
Operating

Temperature Range

A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

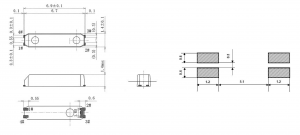

External dimensions
