FM206

Frequency:
32.768KHz

Size:
2.0 x 6.0 mm

Temperature:
-40℃~+85℃

Stability:
±20ppm

SKU: 3232
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

PARAMETERS  SPECIFICATION
Frequency Range 32.768KHz standard,20.000~160.000KHz
Loading Capacitance 12.5pF Std. 6 to 20pF Series available
Drive Level 1.0μW Max
Frequency Tolerance ±10ppm~±30ppm(at 25℃)
Equivalent Resistance 50KΩ Max
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -20~+70℃ / -40~+85℃
Storage Temp. Range:  -55~+125℃
Aging(25℃,First Year) ±3ppm max

PART NUMBER GUIDE e.g. FTX32.768K12.5FM206-20 (*FM206=2.0×6.0mm SMD)

Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pF FM206 +/-20ppm D



Definition Description
Operating

Temperature Range

A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

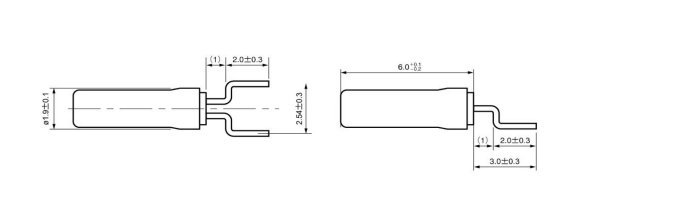

External dimensions
