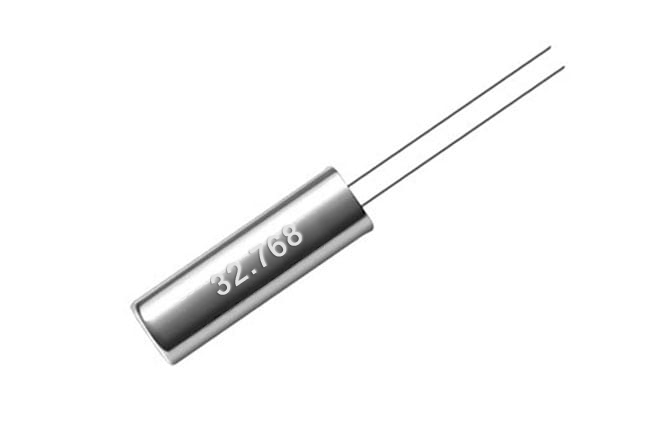

DT38
Frequency:32.768KHz

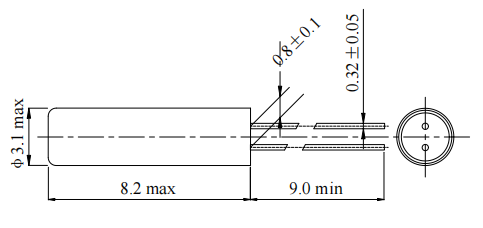

Size:3.0 x 8.0 mm
Temperature:-40℃~+85℃
Stability:±20ppm
SKU: 4322
Type: | , |
Mode: | , |
Product No.: | , |
Size: | , |
Resolution: | , |
Outline Dimension: | , |
Active Area: | , |
Interface: | , |
IC: | , |
Brightness: | , |
Touch Screen: | , |
View Direction: | , |
Pin No.: | , |
Shape: | , |
Description
Parameter Table
PARAMETERS | SPECIFICATION |
Frequency Range | 32.768KHz (30.00~ 200.00 KHz available) |
Loading Capacitance | 12.5pF Std. 6 pF~20pF available |
Drive Level | 1.0μW Max |
Frequency Tolerance | ±5ppm / ±10ppm / ±20ppm(at 25℃) |
Equivalent Resistance | 30KΩ Max |
Temperature coefficient | -0.04×10-6 /℃2 max,
-0.034×10-6 /℃2 typical |
Operating Temp. Range: | -20~+70℃/-40~+85℃ |
Storage Temp. Range: | -40~+85℃ |
Aging(25℃,First Year) | ±5ppm max |
PART NUMBER GUIDE e.g. FTX32.768K12.5D8-20D (*D8=3.0×8.0mm)
Quartz Crystal Resonator | Frequency | Load Capacitance | Package | Frequency Tolerance | Operating Temp. Range | |
FT | X | 32.768KHz | 12.5pF | D8 | +/-20 | D |
Definition | Description |
Operating
Temperature Range |
A:-10~+60℃ |
B:-20~+70℃ | |
C:-30~+80℃ | |
D:-40~+85℃ | |
E:Customer specified |
