VCTCXO-5032

Frequency:10MHz-40MHz

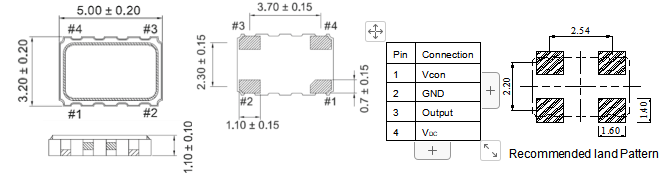

Size:5.0 × 3.2mm

Temperature:-40~+85℃

Stability:±2.5ppm

Description

PARAMETERS	SPECIFICATION
Frequency Range	10.0～40.0MHz
Supply Voltage	1.8V、2.5V、2.8V、3.3V
Supply Current	10MHz≤F0＜15MHz: 1.5mA max 15MHz≤F0＜26MHz: 2.0mA max 26MHz≤F0≤40MHz: 2.5mA max
Frequency Tolerance	±0.5ppm、±1.0ppm、±2.0ppm
Frequency Stability	Vs Temperature (ref. to +25℃)	±1.5~ ±2.5ppm
	Vs Supply voltage change (±5%)	±0.2ppm
	Vs Load change (±10%)	±0.2ppm
	Vs Aging (1^st Year ,25±2℃)	±1.0ppm
Operating Temp. Range	-30～+85℃
Storage Temp. Range	-55～+125℃
Voltage Control Range	±5.0ppm min
Output Waveform:	Clipped Sine Wave
Output Level:	0.8 Vp-p Min (Clipped Sine Wave)
Output Load	10KΩ//10pF
Symmetry	45% ~ 55% typ. at 0.5×Vdc
Start-up Time	2.0mS max
Phase Noise	-115 dBc/Hz max @100Hz offset
	-135 dBc/Hz max @1KHz offset
	-148 dBc/Hz max @10KHz offset
