TCXO-2016

Frequency:13MHz-50MHz

Size:2.0 × 1.6mm

Temperature:-40~+85℃

Stability:±2.5ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadDownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 13.0~50.0MHz
Supply Voltage 1.8V、2.5V、2.8V、3.3V
Supply Current 13MHz≤F0≤26MHz: 1.5mA max

26MHz<F0≤50MHz: 2.0mA max

Frequency Tolerance ±1.0ppm、±1.5ppm、±2.0ppm
Frequency Stability Vs Temperature (ref. to +25℃) ±0.5~ ±2.5ppm
Vs Supply voltage change (±5%) ±0.2ppm
Vs Load change (±10%) ±0.2ppm
Vs Aging (1st Year ,25±2℃) ±1.0ppm
Operating Temp. Range -30~+85℃、-40~+85℃
Storage Temp. Range  -55~+125℃
Output Waveform: Clipped Sine Wave
Output Level: 0.8 Vp-p Min (Clipped Sine Wave)
Output Load 10KΩ//10pF
Symmetry 45% ~ 55% typ. at 0.5×Vdc
Start-up Time 2.0mS max
Phase Noise -115 dBc/Hz max @100Hz offset
-135 dBc/Hz max @1KHz offset
-148 dBc/Hz max @10KHz offset

PART NUMBER GUIDE e.g. FTO26.000M3.0SM2A- 1.0/2.5C (*SM2=2.0×1.6 SMD TYPE)

Logo TCXO Frequency Supply voltage Package Frequency Tolerance Frequency Stability Operating Temp.
F TO 26.000MHz 3.0V SM2A +/-1.0ppm +/-2.5ppm C



Definition Description
Operating Temp. A:-10~+70℃
B:-20~+80℃
C:-30~+85℃
D-40~+85℃
ECustomer specified

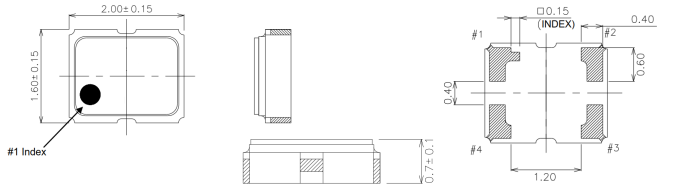

External dimensions
