SC-16S

Frequency:32.768kHz

Size:1.6× 1.0 × 0.5 mm

Temperature:-40 to +85°C

Stability:±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

Item Symbol Specifications
Nominal Frequency f_nom 32.768kHz
Frequency Tolerance f_tol ±20×10 -6
※Please contact us for inquiries regarding available tolerance.
Turnover Temperature Ti + 25±5℃
Parabolic Coefficient B (-0.036±10%)×10 -6 /℃ 2
Load Capacitance CL 6.0pF, 7.0pF, 9.0pF, 12.5pF
※Please contact us for inquiries regarding available CL.
Motional Resistance(ESR) R1 90kΩ Max.
Absolute Maximum Drive Level DLmax 0.5μW Max.
Drive Level DL 0.1μW typ.
Shunt Capacitance C  0 1.2pF typ
Frequency Ageing f_age ±3×10 -6 /Year
Operating Temperature T_use -40℃〜+ 85℃
Storage Temperature T_stg -55℃〜+ 125℃

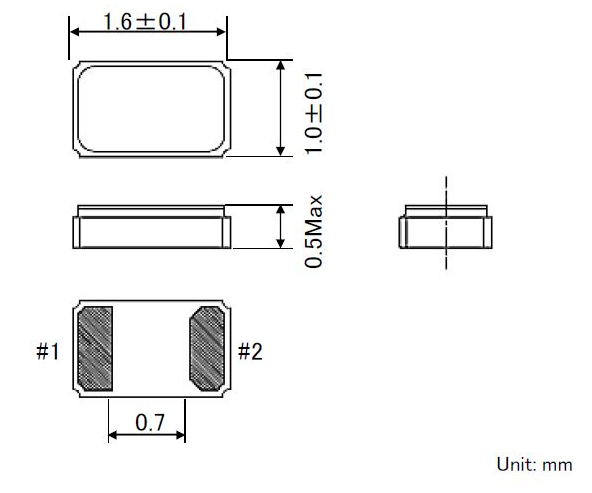

External dimensions
