Frequency:32.768 kHz

Size:7 x 1.5 x 1.4 mm


Stability:±5ppm, ±10ppm, ±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,


Parameter Table

Item Symbol Specifications
Nominal Frequency f_nom 32.768kHz
Frequency Tolerance f_tol ±5 x 10-6, ±10 x 10-6, ±20 x 10-6
※Please contact us for inquiries regarding available tolerance.
Turnover Temperature Ti +25±5ºC
Parabolic Coefficient B (−0.033±10%) x 10-6/ºC2
Load Capacitance CL 7.0pF , 9.0pF, 12.5pF
※Please contact us for inquiries regarding available CL.
Motional Resistance(ESR) R1 65kΩ max.
Absolute Maximum Drive Level DLmax. 1.0μW
Drive Level DL 0.1μW
Shunt Capacitance C 0 0.9pF typ.
Frequency Ageing f_age ±3 x 10-6
Operating Temperature T_use −40ºC to +85ºC
Storage Temperature T_stg −55ºC to +125ºC

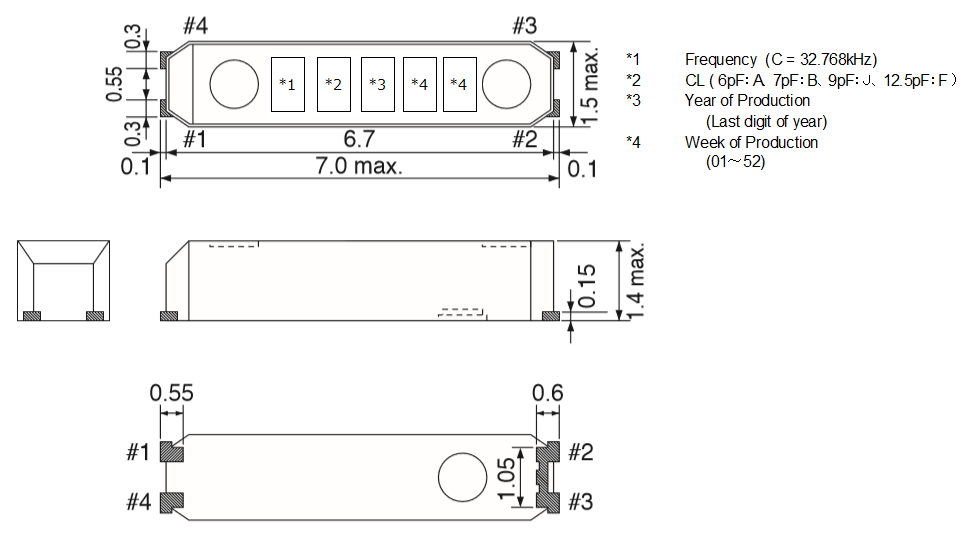

External dimensions
