FC-12M 9.0PF

Frequency:32.768 kHz

Size:2.05 x 1.2 x 0.6 mm

Temperature:-40 to +85°C


Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,


Parameter Table

Model name FC-12M
Part No. X1A0000610008
Frequency 32.768000kHz
Size (LxWxH) 2.05 x 1.2 x 0.6 mm
Customer load capacitance 9.0pF
Frequency tolerance +/-20.0ppm
Operating Temperature -40 to +85°C
Motional resistance (Max) 90kΩ
Extra Options No
Level of Drive(Max) 0.5µW
Turnover temperature +25ºC +/-5ºC
Parabolic coefficient (Max) -0.04 x 10^-6/°C²
Frequency aging +/- 3 ppm
Terminal plating(Sales) Au

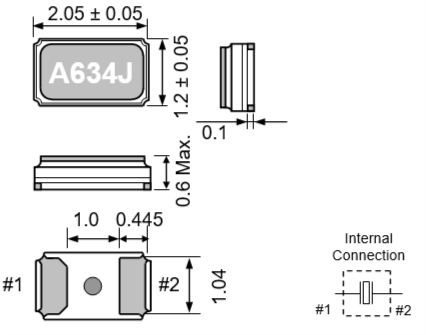

External dimensions
