OSC-SMD3225

Frequency:32.768KHz 2MHz-80MHz

Size:3.2 x 2.5 mm

Temperature:-20℃~+70℃ -40℃~+85℃

Stability:±20ppm ±25ppm

SKU: 1143
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS  SPECIFICATION
Frequency Range 2~80MHz, 32.768KHz
Dimensions 3.2 x 2.5x 1.1mm
Supply voltage 1.8V,2.5V,2.8V,3.3V,5.0V
Input Current See Below
Frequency Stability Overall ±20ppm~±50ppm
Operating Temp. Range -10~+60℃ to -40~+85℃
Storage Temp. Range  -55~+125℃
Output Load HCMOS/TTL(15pF~30pF/10TTL)
Symmetry 45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc
Start-up time 10mS max
Enable/ Disable Function O/E or E/D

Part Number Guide:e.g. FXO12.000M3.3SM3-50D (*SM2=3.2×2.5 SMD TYPE)

Logo Quartz Crystal Oscillator Frequency Supply voltage Package Frequency Stability Operating Temp. Range
F XO 12.000MHz 3.3 SM3 50 D



Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

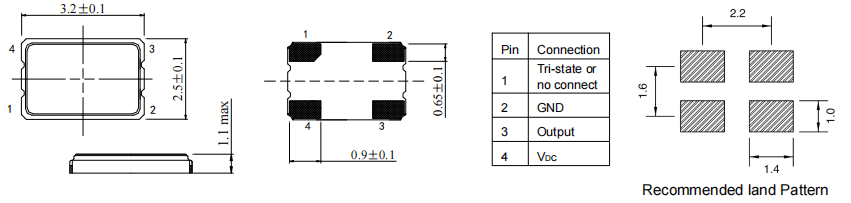

External dimensions
