NX3215SA

Frequency:32.768 kHz

Size:3.2 × 1.5 × 0.8 mm

Temperature:-40 to +85°C

Stability:±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

Standard Standard
Nominal Frequency (kHz) 32.768
Package Size (L×W×H : mm) 3.2×1.5×0.8
Operating Temperature Range  (°C) -40 to +85
Storage Temperature Range   (°C) -40 to +85
Level of Drive (µW) 0.1 (Max. 0.5)
Frequency Tolerance (25±3°C) ±20×10-6
Turning Point (°C) +25 ± 5
Temperature Coefficient (/°C2) Max. −0.04 × 10−6
Load Capacitance (pF) 6 9 12.5
Equivalent Series Resistance (kΩ) Max. 70
Shunt Capacitance (pF) Typ. 1.0 / Max. 1.5
Insulation Resistance (MΩ) Min. 500
Specification Number STD-MUA-14 STD-MUA-9 STD-MUA-8

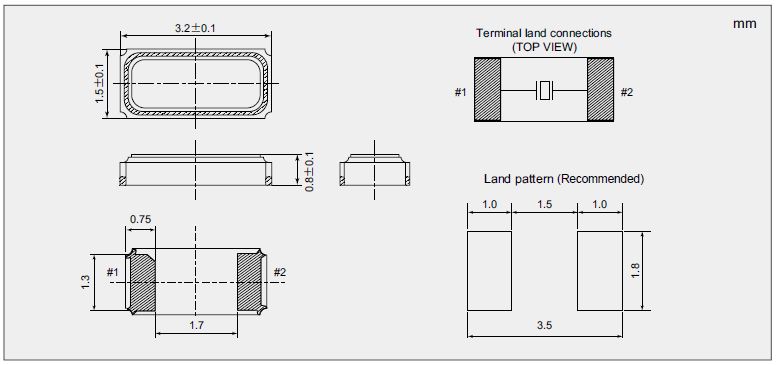

External dimensions
