DST310S

Frequency:32.768kHz

Size:3.2 × 1.5 × 0.85mm

Temperature:-40 to +85°C

Stability:±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

Type DST310S
Frequency Range 32.768kHz
Load Capacitance 7pF, 9pF, 12.5pF
Drive Level 0.2μW (1.0μW max.)
Frequency Tolerance ±20×10-6 (at 25℃)
Series Resistance 50kΩ max.
Turnover Temperature +25℃±5℃
Parabolic Coefficient -0.04×10-6 / ℃2 max.
Operating Temperature Range -40 to +85℃
Storage Temperature Range -40 to +85℃
Shunt Capacitance 1.3pF typ.
Packing Unit (1) 3000pcs./reel (Φ180)

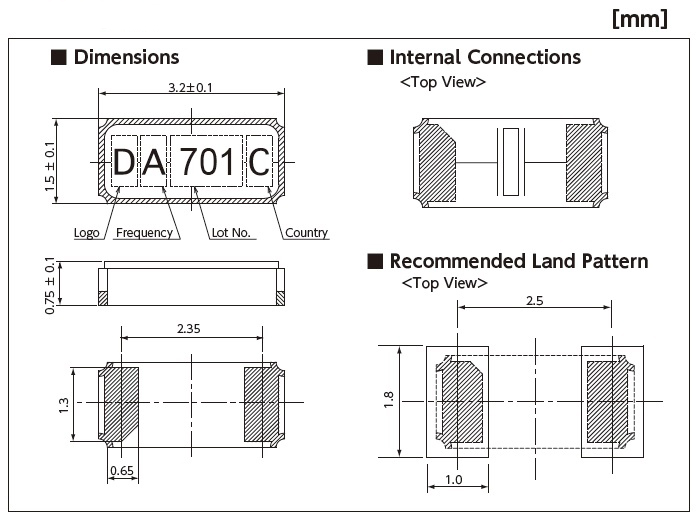

External dimensions
