DST210AC

Frequency:32.768kHz

Size:2.0 x 1.2 x 0.55mm

Temperature:-40 to +85°C

Stability:±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

Type DST210AC
Frequency Range 32.768kHz
Load Capacitance 6pF, 7pF, 9pF, 12.5pF
Drive Level 0.1μW (0.5μW max.)
Frequency Tolerance ±20×10-6 (at 25℃)
Series Resistance 80kΩ max.
Turnover Temperature +25℃±5℃
Parabolic Coefficient -0.04×10-6 / ℃2 max.
Operating Temperature Range -40 to +85℃
Storage Temperature Range -40 to +85℃
Shunt Capacitance 1.3pF typ.
Packing Unit (1) 3,000pcs/reel (Φ180)

Part Number Guide X201232768KGB2SI

Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp
X 2.0 x 1.2 32.768K G B 2 S I

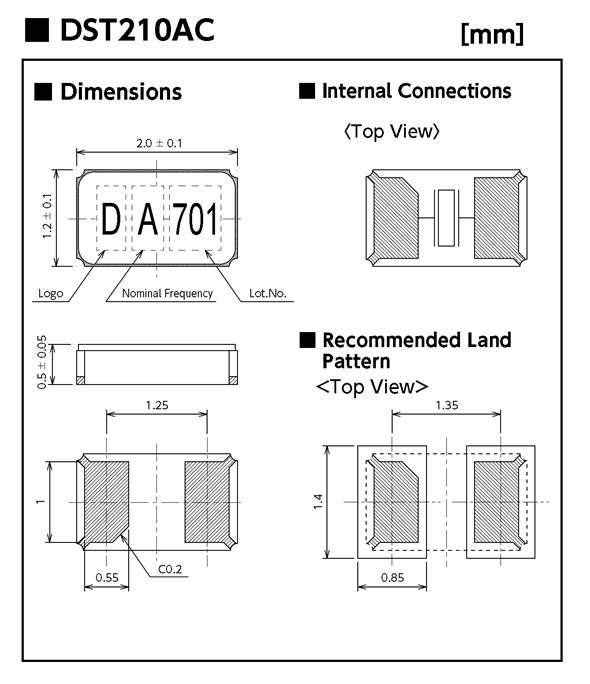

External dimensions
