DST1610A

Frequency:32.768kHz

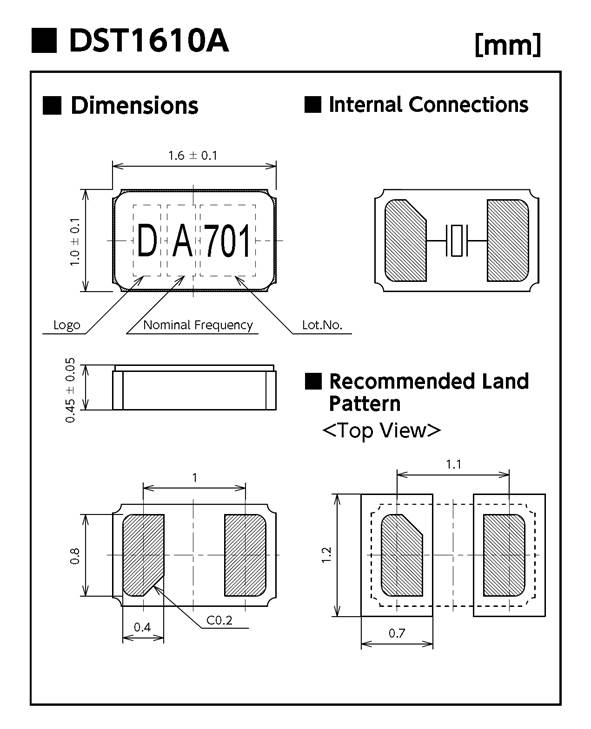

Size:1.6× 1.0 × 0.5 mm

Temperature:-40 to +85°C

Stability:±20ppm

Description

Type	DST1610AL
Frequency Range	32.768kHz
Load Capacitance	6pF, 7pF, 9pF, 12.5pF
Drive Level	0.1μW (0.5μW max.)
Frequency Tolerance	±20×10-6 (at 25℃)
Series Resistance	80kΩ max.
Turnover Temperature	+25℃±5℃
Parabolic Coefficient	-0.04×10-6 / ℃2 max.
Operating Temperature Range	-40 to +85℃
Storage Temperature Range	-40 to +85℃
Shunt Capacitance	1.2pF typ.
Packing Unit (1)	3,000pcs/reel (Φ180)
