(VC)TCXO-2016(sin)

Frequency:10MHz-60MHz

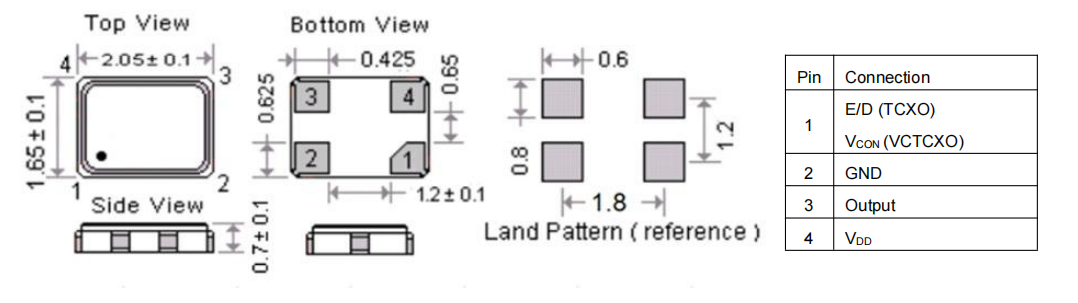

Size:2.0 × 1.6mm

Temperature:-40~+85℃

Stability:±0.5ppm ~ ±2.5ppm

Description

PARAMETERS	SPECIFICATION
Frequency Range	10.0～60.0MHz
Frequency Tolerance	±1.0ppm、±2.0ppm at +25± 2℃
Frequency Stability	Vs Temperature (ref. to +25℃)			±0.5~ ±2.5ppm
	Vs Supply voltage change (±5%)			±0.2ppm
	Vs Load change (±10%)			±0.2ppm
	Vs Aging (1^st Year , 25±2℃)			±1.0ppm
Supply Voltage	1.8V、2.5V、2.8V、3.0V、3.3V
Output Waveform	Clipped Sine Wave
Output Load	10KΩ//10pF
Current Consumption	10.0 ~ 15 MHz: 1.5 mA max. 15.1 ~ 26.0 MHz : 2.0 mA max. 26.1 ~ 52.0 MHz : 3.5 mA max.
Output Level	0.8 Vp-p min.
Operating Temp. Range	-30～+85℃、-40～+85℃
Storage Temp. Range	-55～+125℃
Electrical Frequency Tuning (For VCTCXO)	Control Voltage Center	1.8V	2.5V/2.8V		3.0/3.3V
		0.9±0.6V	1.4±1.0V		1.5±1.0V
	Frequency Control Range	±5.0ppm min.
Start-up Time	2.0mS typ., 5.0mS max.
Phase Noise	-115 dBc/Hz max @100Hz offset
	-135 dBc/Hz max @1KHz offset
	-148 dBc/Hz max @10KHz offset

Logo

Type

Frequency

Supply Voltage

Package

Output Waveform

Frequency

Tolerance

Frequency

Stability

Operating Temp.

26.000M

3.0

SM2A

1.0

2.5

VTO
