(VC)TCXO-3225(sin)
Frequency:8MHz-52MHz

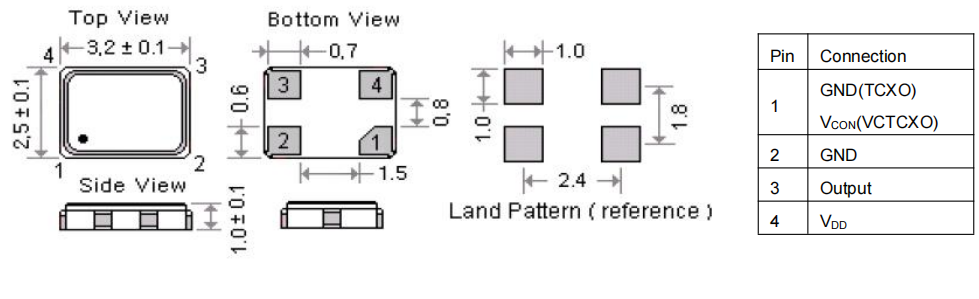

Size:3.2 × 2.5mm
Temperature:-40~+85℃
Stability:±0.5ppm ~ ±2.5ppm
Description
Download Parameter Table
| PARAMETERS | SPECIFICATION | |||||
| Frequency Range | 8.0～52.0MHz | |||||
| Frequency Tolerance | ±1.0ppm、±2.0ppm at +25± 2℃ | |||||
| Frequency Stability | Vs Temperature (ref. to +25℃) | ±0.5~ ±2.5ppm | ||||
| Vs Supply voltage change (±5%) | ±0.2ppm | |||||
| Vs Load change (±10%) | ±0.2ppm | |||||
| Vs Aging (1st Year , 25±2℃) | ±1.0ppm | |||||
| Supply Voltage | 1.8V、2.5V、2.8V、3.0V、3.3V | |||||
| Output Waveform | Clipped Sine Wave | |||||
| Output Load | 10KΩ//10pF | |||||
| Current Consumption | 8.0 ~ 15 MHz: 1.5 mA max.
15.1 ~ 26.0 MHz : 2.0 mA max. 26.1 ~ 52.0 MHz : 3.5 mA max. |
|||||
| Output Level | 0.8 Vp-p min. | |||||
| Operating Temp. Range | -30～+85℃、-40～+85℃ | |||||
| Storage Temp. Range | -55～+125℃ | |||||
| Electrical Frequency Tuning (For VCTCXO) | Control Voltage Center | 1.8V | 2.5V/2.8V | 3.0/3.3V | ||
| 0.9±0.6V | 1.4±1.0V | 1.5±1.0V | ||||
| Frequency Control Range | ±5.0ppm min. | |||||
| Start-up Time | 2.0mS typ., 5.0mS max. | |||||
| Phase Noise | -115 dBc/Hz max @100Hz offset | |||||
| -135 dBc/Hz max @1KHz offset | ||||||
| -148 dBc/Hz max @10KHz offset | ||||||
PART NUMBER GUIDE e.g. FTO26.000M3.0SM3S-1.0/2.5C (*SM3S=3.2×2.5 SMD TYPE, Sin Wave)
