SMD6035-Seam-2pad

Frequency:
7.3MHz-50MHz

Size:
6.0×3.5 mm

Temperature:
-20℃~+70℃

-40℃~+85℃

Stability:
±10ppm

±20ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 7.3~50MHz
Operation Mode Fundamental
Loading Capacitance 18pF Std. 8 to 32pF Series available
Drive Level 10μW(500μW Max)
Frequency Tolerance ±10ppm~±30ppm(at 25℃)
Equivalent Resistance 60Ω Max
Frequency Stability ±10ppm~±50ppm
Operating Temp. Range: -10~+60℃ to -40~+85℃
Storage Temp. Range:  -55~+125℃

Part Number Guide : e.g. FTX12.000M18SM6SA-20/20B (*SM6SA=6.0×3.5 SMD SEAM 2PAD TYPE)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 12.000MHz 18pF SM6SA +/-20ppm +/-20ppm B
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

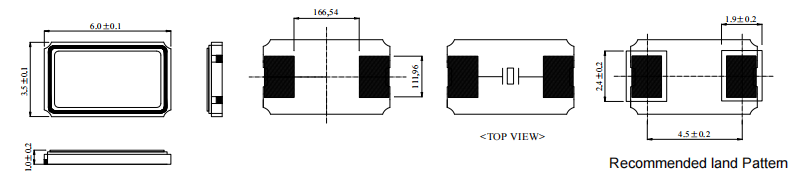

External dimensions
