DSB1612SDN
Frequency:16MHz – 60MHz

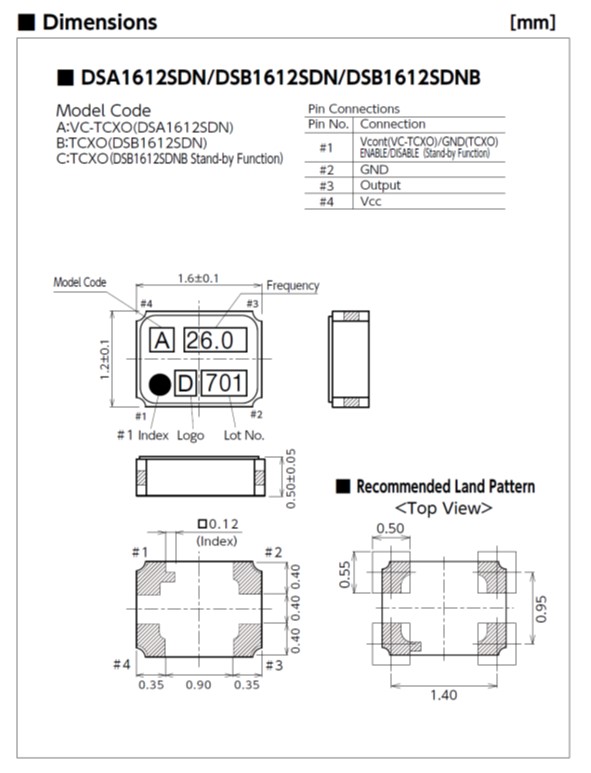

Size:1.6×1.2×0.5mm
Temperature:-30℃~+85℃
-40℃~+85℃
Stability:±0.5ppm,±2.5ppm,
Type: | , |
Mode: | , |
Product No.: | , |
Size: | , |
Resolution: | , |
Outline Dimension: | , |
Active Area: | , |
Interface: | , |
IC: | , |
Brightness: | , |
Touch Screen: | , |
View Direction: | , |
Pin No.: | , |
Shape: | , |
Description
Parameter Table
Type | DSB1612SDN (TCXO) | |||
Frequency Range | 16 to 60MHz | |||
Standard Frequency | 16.3676MHz / 16.367667MHz / 16.368MHz / 16.369MHz / 16.8MHz / 26MHz / 33.6MHz | |||
Supply Voltage Range | +1.68 to +3.5V | |||
Supply Voltage (VCC) | +1.8V / +2.6V / +2.8V / +3.0V / +3.3V | |||
Current Consumption | +1.5mA max. (f≦26MHz) / +2.0mA max. (26<f≦52MHz) / +2.5mA max. (f≦60MHz) | |||
Stand-by Current | – | |||
(#1 pin “L” Level) | ||||
Output Level | 0.8Vp-p min. (f≦52MHz) (Clipped Sinewave/DC-coupled) | |||
Output Load | 10kΩ//10pF | |||
Frequency Stability | Tolerance | ±1.5×10-6 max. (After 2 reflows) | ||
vs. Temperature | ±0.5×10-6,±2.5×10-6 max. / -30 to +85℃ | |||
±0.5×10-6,±2.5×10-6 max. / -40 to +85℃ (Option) | ||||
vs. Supply Voltage | ±0.2×10-6 max. (VCC ±5%) | |||
vs. Load Variation | ±0.2×10-6 max. (10kΩ//10pF±10%) | |||
vs. Aging | ±1.0×10-6 max. / year | |||
Frequency Control | Control Sensitivity | – | ||
Response Slope | – | |||
Start up Time | 2.0ms max. | |||
Output Enable Time | – | |||
Phase Noise | [f≦26MHz] | [26MHz<f≦40MHz] | [40MHz<f≦52MHz] | |
Offset 100Hz | -115dBc/Hz | -110dBc/Hz | -105dBc/Hz | |
Offset 1kHz | -130dBc/Hz | -130dBc/Hz | -125dBc/Hz | |
Offset 10kHz | -150dBc/Hz | -150dBc/Hz | -145dBc/Hz | |
Offset 100kHz | -155dBc/Hz | -155dBc/Hz | -150dBc/Hz | |
Packing Unit (1) | 3000pcs./reel (Φ180) |
