32.768 kHz Crystal Resonator Selection Guide
2026-08-28

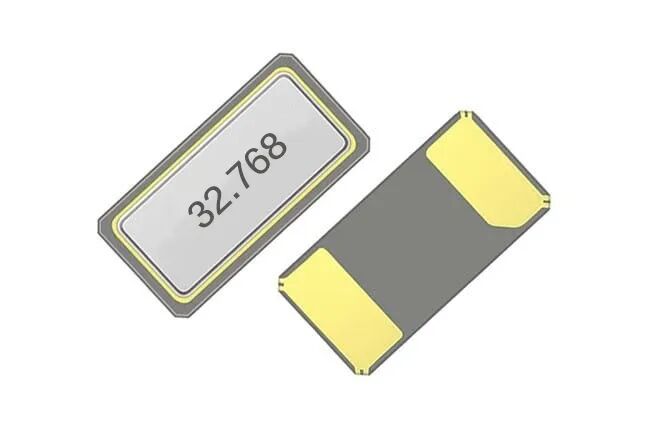

32.768 kHz crystal resonator is a common low‑frequency crystal component, widely adopted in various electronic devices such as watches, computers, mobile phones and others. Several critical factors should be evaluated before selecting a 32.768 kHz crystal resonator. This document sorts out core know‑how and introduces how to choose a suitable 32.768 kHz crystal resonator for your product application.
The core of 32.768 kHz crystal resonator selection lies in strict matching of load capacitance (CL), controlling Equivalent Series Resistance (ESR) to guarantee reliable oscillation start‑up, and determining frequency accuracy (ppm) and package according to application scenarios.

1 Introduction of Key Selection Parameters
◆ Load Capacitance (CL):Must match the requirement from MCU/RTC chip datasheet exactly (common values: 6 pF, 9 pF, 12.5 pF). Mismatch will cause frequency offset or oscillation failure.Calculation formula for external matching capacitor: Cext≈2×(CL−Cstray)Where Cstray (parasitic stray capacitance) is normally 2‑5 pF.
◆ Equivalent Series Resistance (ESR):Lower ESR enables easier oscillation start‑up. Make sure ESR is below the upper limit of chip drive capability (e.g. ≤70 kΩ for STM32). Prefer low‑ESR models for low‑power applications.
◆ Frequency Accuracy & Temperature Drift:±20 ppm for consumer‑grade products (monthly timing error approx. ±1.5 minutes); ±10 ppm or ±5 ppm for industrial / metering‑grade applications. For wide‑temperature‑range environments, focus on full‑temperature‑range stability rather than room‑temperature‑only accuracy.
◆ Drive Level:For battery‑powered devices, select low drive power (<1 μW) to avoid crystal aging and excessive power consumption. Meanwhile prevent oscillation halt caused by insufficient drive power.
2 Key Application‑Oriented Considerations
◆ Stability Requirements:Stability is the priority when choosing a 32.768 kHz crystal resonator. Stability is usually expressed in ppm (parts‑per‑million). Higher ppm values mean larger crystal frequency deviation, which brings larger timing error. Applications demanding precise clock signals require high frequency stability. For other applications such as temperature sensors or low‑power equipment, moderately higher ppm tolerance may be acceptable.
◆ Operating Temperature Range:Operating temperature range is another important selection factor. Different crystal resonators feature different operating temperature spans. Confirm the maximum and minimum ambient temperature of your application environment in advance and select a crystal resonator that can cover such temperature range.
◆ Load Capacitance Value:Load capacitance is also a vital selection factor. Differences among products, PCB routing and external matching capacitors may introduce frequency deviation. Professional test equipment can be used for crystal specification confirmation at design stage.
Size and Package Type:Crystal size and package form‑factor shall also be considered. Small‑size crystal resonators fit compact devices and dense‑layout PCBs; larger packages are generally used for bigger equipment. Besides, pin type and layout need to be compatible with your hardware design.
◆ Reliability and Service Life:Crystal resonators with higher reliability deliver longer service life. Therefore, selecting high‑quality branded manufacturers is essential.
To sum up, key factors for 32.768 kHz crystal resonator selection contain stability requirement, operating temperature range, size & package type, load capacitance value, reliability and service life. Before component selection, clearly define your application requirements and pick crystal resonators satisfying all specifications. Choosing trustworthy and high‑quality manufacturers is also critical for delivering good‑performance end‑products.
3 PCB & Implementation Notes
◆ PCB Layout:Place the crystal resonator and matching capacitors right next to the chip’s OSC pins (trace length <5 mm). Keep complete ground‑plane shielding underneath. Never route traces across split ground planes or place components close to high‑speed / power‑noise sources.
◆ Capacitor Dielectric Material:External matching capacitors must use C0G/NP0 dielectric (low temperature drift). Dielectrics such as X7R / Y5V are strictly forbidden.
◆ Validation & Tuning:Before mass production, test real‑world oscillation waveform (clean sine wave with moderate Vpp amplitude) as well as frequency offset across high‑low temperature conditions. Reserve footprint for trimming capacitors for fine frequency adjustment.
