SMD3215

SMD3215

Frequency:32.768KHz
Size:3.2 x 1.5 mm
Temperature:-20℃~+70℃
Stability:±20ppm ±25ppm

Quantity

Contact Now

add to cart

PARAMETERS	SPECIFICATION
Frequency Range	32.768KHz
Loading Capacitance	12.5pF Std. 7 pF available
Drive Level	1.0μW Max
Frequency Tolerance	±20ppm（at 25℃）
Equivalent Resistance	70KΩ Max
Temperature coefficient	-0.04×10^-6 /℃² max
Operating Temp. Range:	-40～+85℃
Storage Temp. Range:	-55～+125℃
Aging（25℃，First Year）	±3ppm max

PART NUMBER GUIDE e.g. FTX32.768K12.5SM3-20D (*SM3=3.2×1.5 SMD)

	Quartz Crystal Resonator	Frequency	Load Capacitance	Package	Frequency Tolerance	Operating Temp. Range
FT	X	32.768KHz	12.5pF	SM3	+/-20ppm	D

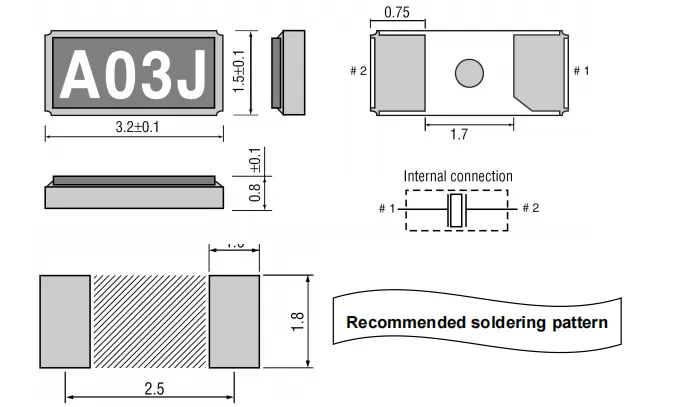

External dimensions
