SMD1610

SMD1610

Frequency:32.768KHz
Size:1.6 x 1.0 mm
Temperature:-40℃~+85℃
Stability:±20ppm

Quantity

Contact Now

add to cart

PARAMETERS	SPECIFICATION
Frequency Range	32.768KHz
Loading Capacitance	12.5pF Std. 9 pF available
Drive Level	0.1μW (1.0μW Max)
Frequency Tolerance	±20ppm（at 25℃）
Equivalent Resistance	90KΩ Max
Turn-over temperature	+25℃±5℃
Temperature coefficient	-0.04×10^-6 /℃² max
Operating Temp. Range:	-40～+85℃
Storage Temp. Range:	-40～+85℃
Aging（25℃，First Year）	±3ppm max

PART NUMBER GUIDE e.g. FTX32.768K12.5SM1-20D (*SM1=1.6×1.0 SMD)

	Quartz Crystal Resonator	Frequency	Load Capacitance	Package	Frequency Tolerance	Operating Temp. Range
FT	X	32.768KHz	12.5pF	SM1	20ppm	D

Definition	Description
Operating Temp. Range	A：-10~+60℃
	B：-20~+70℃
	C：-30~+80℃
	D：-40~+85℃
	E：Customer specified

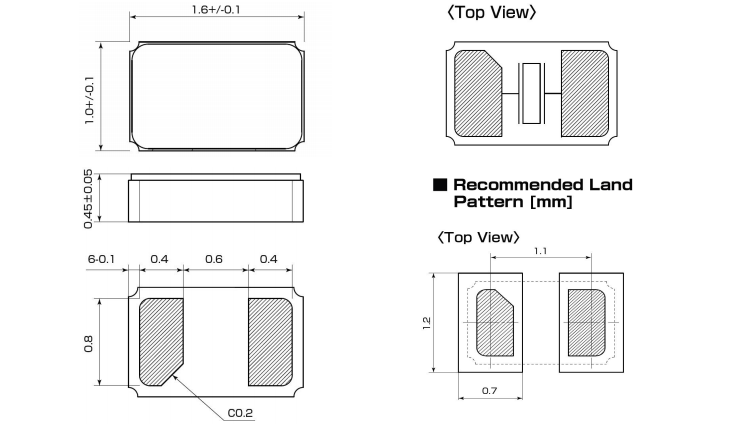

External dimensions
