OSC-SMD2016

OSC-SMD2016

OSC-SMD2016
Frequency:
32.768KHz 1.5MHz-50MHz

Size:
2.0 x 1.6 mm

Temperature:
-20℃~+70℃ -40℃~+85℃

Stability:
±20ppm ±25ppm
Quantity
Contact Now
add to cart
PARAMETERS SPECIFICATION
Frequency Range1.5～50MHz
Dimensions 2.0 x 1.6 x 0.75 mm
Supply voltage1.8V,2.5V,2.8V,3.3V
Input CurrentSee Below
Frequency Stability Overall±20ppm～±50ppm
Operating Temp. Range-10～+60℃ to -40～+85℃
Storage Temp. Range -55～+125℃
Output LoadHCMOS/TTL（15pF~30pF/10TTL）
Symmetry45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc
Start-up time10mS max
Enable/ Disable FunctionO/E or E/D

Part Number Guide :e.g. FXO12.000M3.3SM2A-50D (*SM2A=2.0×1.6 SMD TYPE)

LogoQuartz Crystal OscillatorFrequencySupply voltagePackageFrequency StabilityOperating Temp. Range
FXO12.000MHz3.3VSM2A+/-50ppmD


Operating Temp. RangeA：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

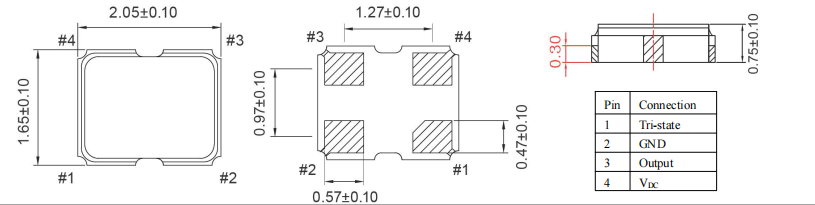

External dimensions
