OSC-SMD7050-LVDS
OSC-SMD7050-LVDS
Frequency:
13.5MHz-200MHz
Size:
7.0 x 5.0 mm
Temperature:
-40℃~+85℃ -40℃~+105℃
Stability:
±30ppm ±50ppm
13.5MHz-200MHz
Size:
7.0 x 5.0 mm
Temperature:
-40℃~+85℃ -40℃~+105℃
Stability:
±30ppm ±50ppm
Quantity

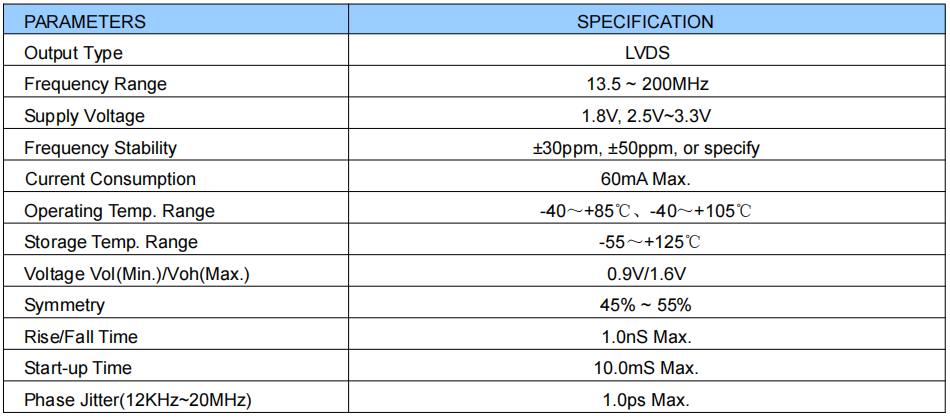

Parameter Table
PART NUMBER GUIDE e.g. FXO125.000M3.3SM7L-50D (*SM5L=7.0×5.0 LVDS TYPE)
| Logo | Type | Frequency | Supply Voltage | Package & Output Type | Frequency Stability | Operating Temp. |
| F | XO | 125.000M | 3.3 | SM7L | 50 | D |

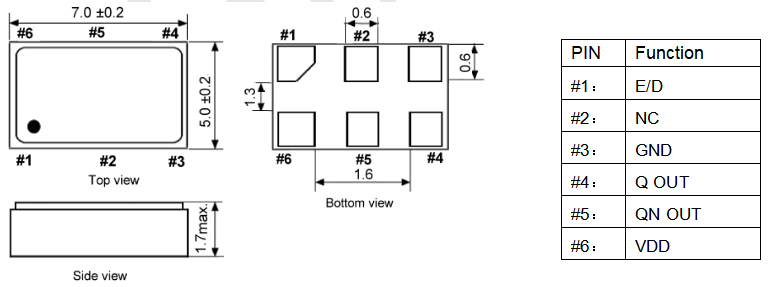

External dimensions
