OSC-SMD3225-LVDS
OSC-SMD3225-LVDS
Frequency:
13.5MHz-250MHz
Size:
3.2 x 2.5 mm
Temperature:
-40℃~+85℃ -40℃~+105℃
Stability:
±30ppm ±50ppm
13.5MHz-250MHz
Size:
3.2 x 2.5 mm
Temperature:
-40℃~+85℃ -40℃~+105℃
Stability:
±30ppm ±50ppm
Quantity

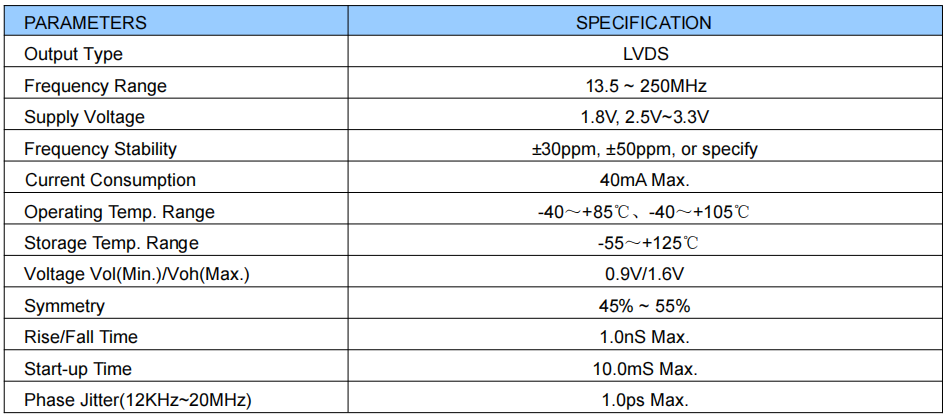

Parameter Table
PART NUMBER GUIDE e.g. FXO125.000M3.3SM3L-50D (*SM3L=3.2×2.5 LVDS TYPE)
| Logo | Type | Frequency | Supply Voltage | Package & Output Type | Frequency Stability | Operating Temp. |
| F | XO | 125.000M | 3.3 | SM3L | 50 | D |

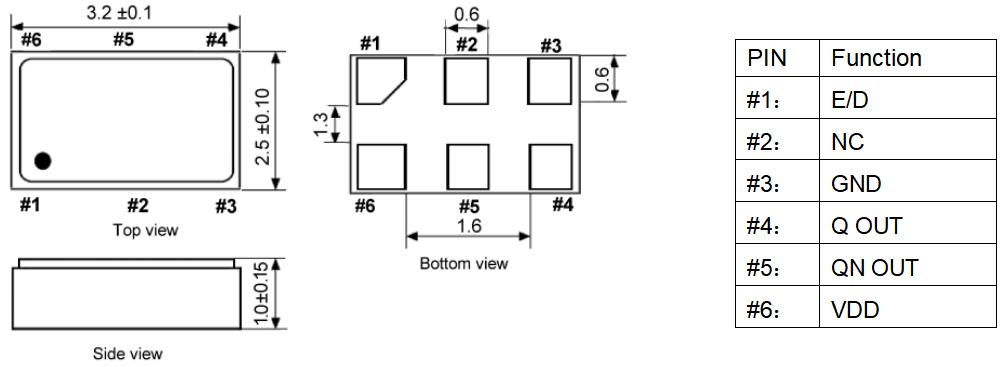

External dimensions
