Frequency:0.4MHz-200MHz

Size:12.7 x 12.7 mm

Temperature:-20℃~+70℃ -40℃~+85℃

Stability:±20ppm ±25ppm

Quantity

Contact Now

add to cart

PARAMETERS	SPECIFICATION
Frequency Range	0.4～200MHz
Supply voltage	1.8V、3.3V、5.0V
Input Current		TTL	CMOS
	0.5MHz ~ 24.999MHz	25mA max	20mA max
	25MHz ~ 99.999MHz	40mA max	40mA max
	100MHz ~ 200MHz	60mA max	60mA max
Frequency Stability Overall	±20ppm～±100ppm
Operating Temp. Range	-10～+60℃ to -40～+85℃
Storage Temp. Range	-55～+125℃
Output Load	CMOS or TTL（15pF/1-10TTL）
Symmetry	45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc
Start-up time	10mS max
Rise & Fall Time	10nS max
Aging	±5ppm max/Year

Part Number Guide： e.g. FXO12.000M3.3H-50D (*H=Half Size，DIP8)

Logo	Quartz Crystal Oscillator	Frequency	Supply voltage	Package	Frequency Stability	Operating Temp. Range
F	XO	12.000MHz	3.3V	H	+/-50ppm	D

Operating Temp. Range	A：-10~+60℃
	B：-20~+70℃
	C：-30~+80℃
	D：-40~+85℃
	E：Customer specified

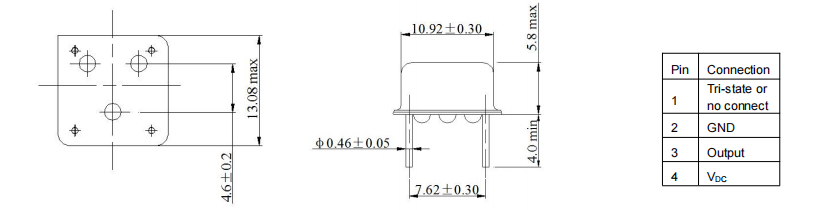

External dimensions
