HC-49S-3Pin
HC-49S-3Pin
Frequency:
3.5MHz-100MHz
Size:
11.4 × 4.8mm
Temperature:
-20~+70℃ -40~+85℃
Stability:
±10ppm ±20ppm ±30ppm
3.5MHz-100MHz
Size:
11.4 × 4.8mm
Temperature:
-20~+70℃ -40~+85℃
Stability:
±10ppm ±20ppm ±30ppm
Quantity
| PARAMETERS | SPECIFICATION |
| Frequency Range | 3.5 ~ 100MHz |
| Operation Mode | （3.5 ~ 40MHz） Fundamental （27 ~ 100MHz）3rd /5rdOvertone |
| Loading Capacitance | 20pF Std. 8 to 33pF , Series available |
| Drive Level | 10μW（300μW Max） |
| Frequency Tolerance | ±10ppm ~ ±30ppm（at 25℃） |
| Equivalent Resistance | See Below |
| Frequency Stability | ±2.5ppm ~ ±50ppm |
| Operating Temp. Range: | 0 ~ +50℃ to -40 ~ +85℃ |
| Storage Temp. Range: | -55 ~ +125℃ |
Part Number Guide FTX16.000M20S3P-30/30B
| Logo | Quartz Crystal Resonator | Frequency | Load Capacitance | Package | Frequency Tolerance | Frequency Stability | Operating Temp. Range |
| FT | X | 16.000MHz | 20pF | S3P | +/-30ppm | +/-30ppm | B |
| Definition | Description |
| Operating Temperature Range | A：-10~+60℃ |
| B：-20~+70℃ | |
| C：-30~+80℃ | |
| D：-40~+85℃ | |
| E：Customer specified |

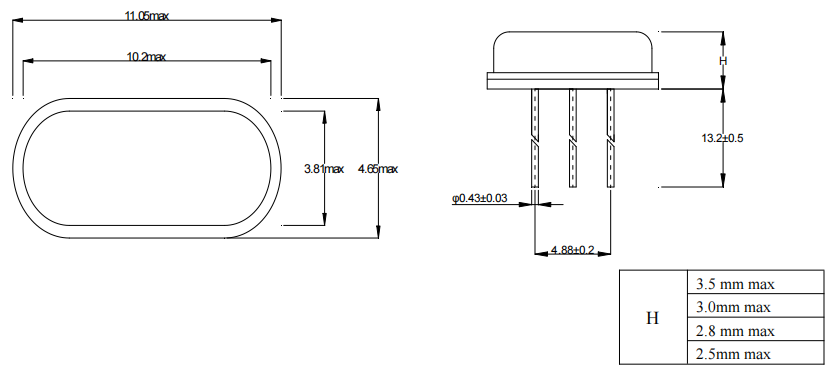

External dimensions
